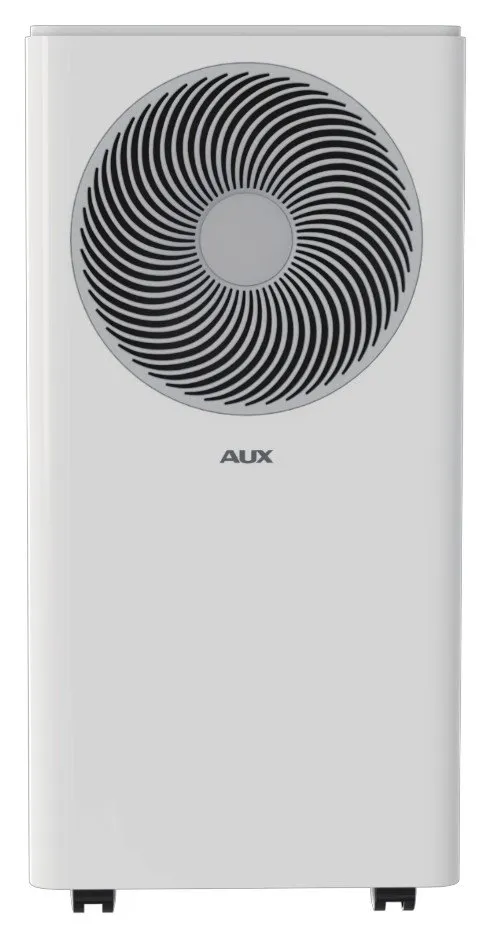

D Series
Front discharge · cooling only The compact one: a slim cabinet that blows straight ahead, in DA, DB and DF panel styles.
- 7,000 Btu/h
- 9,000 Btu/h
Colours: black, grey, white
Cooling that needs no installation. Wheel it in, fit the window kit and switch on. Three series on R290 refrigerant, from 7,000 to 14,000 Btu/h.
The range
All run from a standard 220 – 240 V socket and move on castors.
Front discharge · cooling only The compact one: a slim cabinet that blows straight ahead, in DA, DB and DF panel styles.
Colours: black, grey, white

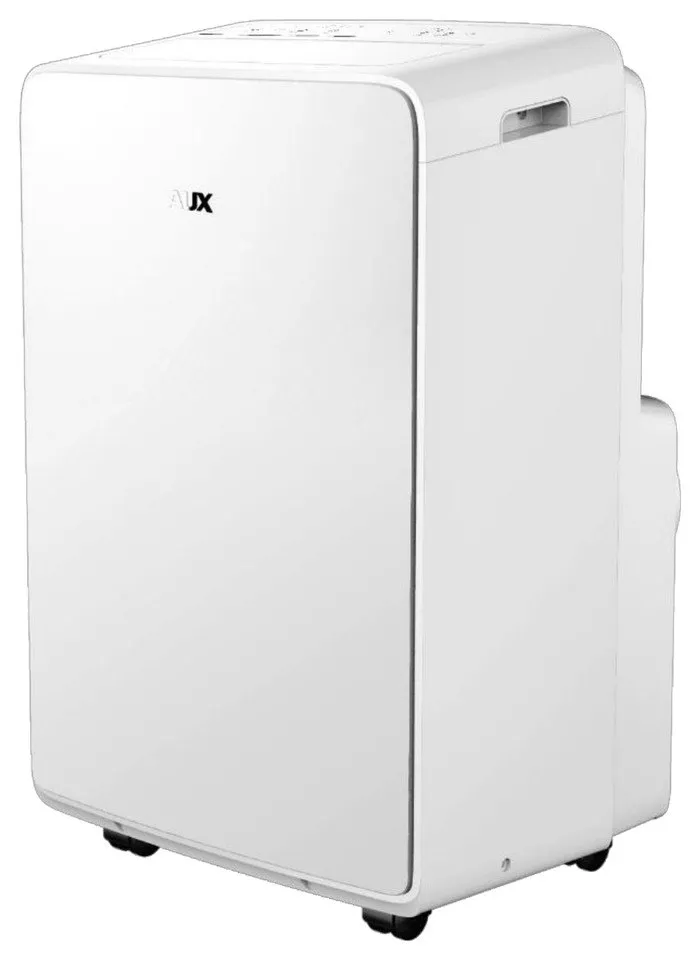

Top discharge · cooling or cooling and heating Top discharge with swing, for larger rooms. Available cooling only, or with heating for year-round use.
Colours: grey, white, grey and white

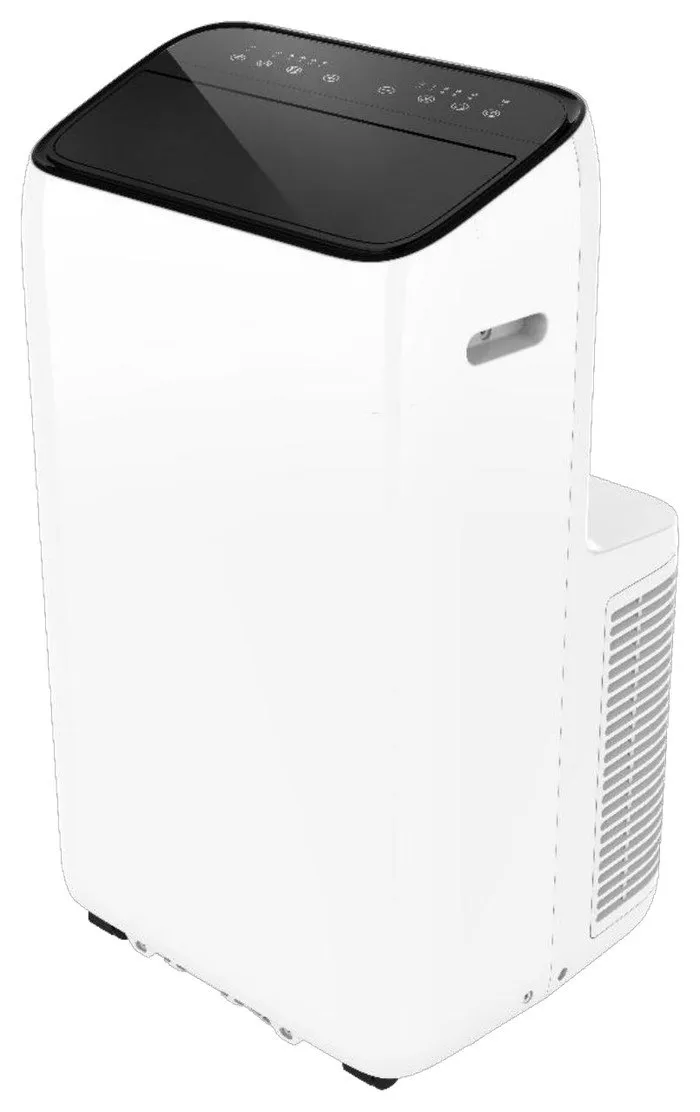

Top discharge · on‑off or inverter One size, three versions: cooling only, cooling and heating, or an A+ inverter model.
Colours: black, grey, white
| SKU | Product | Model |
|---|---|---|
| A1601 | D Series 7,000 Btu/h, cooling | AM-07B1A4/DFR2-B6 |
| A1602 | Q Series 12,000 Btu/h, cooling and heating | AM-H12C4A4/QAR2-B6 |
Features
Condensate is evaporated on the condenser, cooling it and improving efficiency. Runs for 8 hours at 80% relative humidity.
The exhaust duct comes pre‑installed and an expanding window kit is included.
Control it from your phone and come home to a cool room. Works with Alexa and Google Home.
After a power cut the unit restarts by itself with the settings you had chosen.
The unit monitors the water level, shuts down automatically when the tank is full and sounds an alert.
The controller sits in a sheet-metal box with 5VA-rated plastic, guarding against dust, fire and insects.
Specifications
| SKU | Capacity | Cooling | Power input | Energy class / EER | Airflow | Size W × D × H | Net weight |
|---|---|---|---|---|---|---|---|
| A1601 | 7,000 Btu/h | 2,050 W | 788 W | A / 2.6 | 330 m³/h | 350 × 310 × 680 mm | 20 kg |
| — | 9,000 Btu/h | 2,600 W | 1,000 W | A / 2.6 | 330 m³/h | 350 × 310 × 680 mm | 23.5 kg |
| SKU | Model | Cooling | Heating | Energy class / EER | Airflow | Size W × D × H | Net weight |
|---|---|---|---|---|---|---|---|
| — | 9,000 Btu/h, cooling only | 9,000 Btu/h | — | A / 2.6 | 340 m³/h | 415 × 345 × 710 mm | 29 kg |
| — | 9,000 Btu/h, cooling and heating | 9,000 Btu/h | 8,000 Btu/h | A / 2.6 | 340 m³/h | 476 × 385 × 710 mm | 32 kg |
| — | 14,000 Btu/h, cooling and heating | 14,000 Btu/h | 11,000 Btu/h | A / 2.6 | 450 m³/h | 493 × 415 × 802 mm | 36 kg |
| SKU | Model | Cooling | Heating | Energy class / EER | Airflow | Size W × D × H | Net weight |
|---|---|---|---|---|---|---|---|
| — | 12,000 Btu/h, on‑off, cooling only | 12,000 Btu/h | — | A / 2.6 | 450 m³/h | 452 × 403 × 794 mm | 32 kg |
| A1602 | 12,000 Btu/h, on‑off, cooling and heating | 12,000 Btu/h | 9,500 Btu/h | A / 2.6 | 450 m³/h | 452 × 403 × 794 mm | 33 kg |
| — | 12,000 Btu/h, inverter, cooling only | 12,000 Btu/h | — | A+ / 3.1 | 450 m³/h | 452 × 403 × 794 mm | 35 kg |
All models: 220 – 240 V, 50 Hz, R290 refrigerant. European-market specifications.
FAQs
Quick answers about AUX portable air conditioners.
No. Wheel it in, fit the window kit and switch on. The exhaust duct comes pre‑installed, an expanding window kit is included, and every model runs from a standard 220 – 240 V socket.
The D Series is the compact one, with front discharge and cooling only, at 7,000 or 9,000 Btu/h. The M Series has top discharge with swing for larger rooms, at 9,000 or 14,000 Btu/h, cooling only or with heating. The Q Series comes in one size, 12,000 Btu/h, as cooling only, cooling and heating, or an A+ inverter model.
Yes, on the M Series and Q Series models with heating. The D Series is cooling only.
The self-evaporation system evaporates the condensate on the condenser, which also cools the condenser and improves efficiency; the unit runs for 8 hours at 80% relative humidity. When the tank is full, it shuts down automatically and sounds an alert.
Yes, with the optional Wi‑Fi control, which also works with Alexa and Google Home. After a power cut the unit restarts by itself with the settings you had chosen.
Tell us the size of the room and we will recommend the right model: contact us or call 0345 257 7387.
Tell us the size of the room and we will recommend the right model.
