Heating and cooling from a single water circuit, and a natural partner for a heat pump where a low flow temperature would leave radiators undersized.
How it works

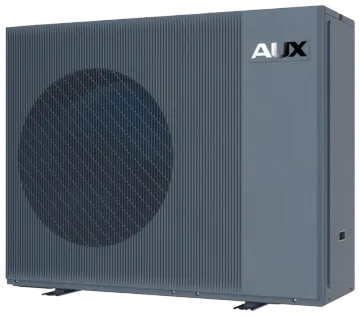

Heat pumpSupplies hot or chilled water
Floor-standing slim130 mm deep
Wall-mounted Q Series3.50 – 8.16 kW heating
Cassette4.80 – 18.90 kW heating
Concealed M Series2.70 – 18.90 kW heatingFour families
A 130 mm deep exposed cabinet that sits where a radiator used to be. 1.30 – 4.35 kW heating at 50 °C, up to 7.37 kW at 70 °C.
| SKU | Model | Cooling, 7 °C water | Heating, 50 °C water | Heating, 70 °C water | Airflow | Size W × H × D |
|---|---|---|---|---|---|---|
| A1567 | AFC-100CO/4A1 | 0.81 kW | 1.30 kW | 2.18 kW | 170 m³/h | 757 × 579 × 132 mm |
| A1506 | AFC-200CO/4A1 | 1.68 kW | 2.44 kW | 4.14 kW | 340 m³/h | 947 × 579 × 132 mm |
| A1568 | AFC-300CO/4A1 | 2.70 kW | 3.40 kW | 5.80 kW | 510 m³/h | 1217 × 579 × 132 mm |
| A1505 | AFC-400CO/4A1 | 3.45 kW | 4.35 kW | 7.37 kW | 630 m³/h | 1217 × 579 × 132 mm |
Capacities and airflow at maximum fan speed. DN20 water connections, DN15 drain. Supplied with a remote controller; a wall thermostat is an optional extra and control valves are not included.

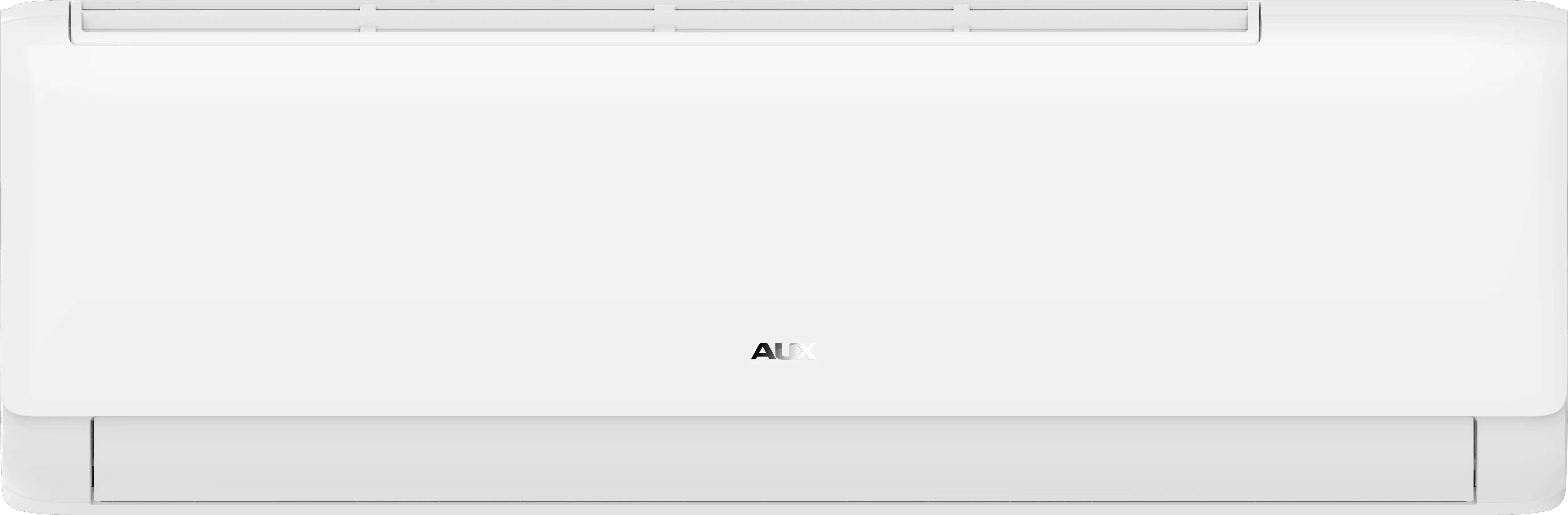

A high-wall unit in the style of an air conditioning indoor unit, with Wi‑Fi, a three-way valve and a Modbus gateway built in.
| SKU | Model | Cooling | Heating, 60 °C water | Airflow | Size W × H × D |
|---|---|---|---|---|---|
| A1569 | AFC-200WM/4A(QC)-N | 2.70 kW | 3.50 kW | 492 m³/h | 965 × 325 × 230 mm |
| A1570 | AFC-300WM/4A(QC)-N | 2.91 kW | 4.07 kW | 585 m³/h | 965 × 325 × 230 mm |
| A1504 | AFC-400WM/4A(QC)-N | 3.81 kW | 5.42 kW | 825 m³/h | 965 × 325 × 230 mm |
| A1571 | AFC-500WM/4A(QC)-N | 4.51 kW | 6.77 kW | 862 m³/h | 1089 × 328 × 227 mm |
| A1503 | AFC-600WM/4A(QC)-N | 5.41 kW | 8.16 kW | 1,020 m³/h | 1089 × 328 × 227 mm |
Capacities and airflow at maximum fan speed. G 3/4″ water connections.

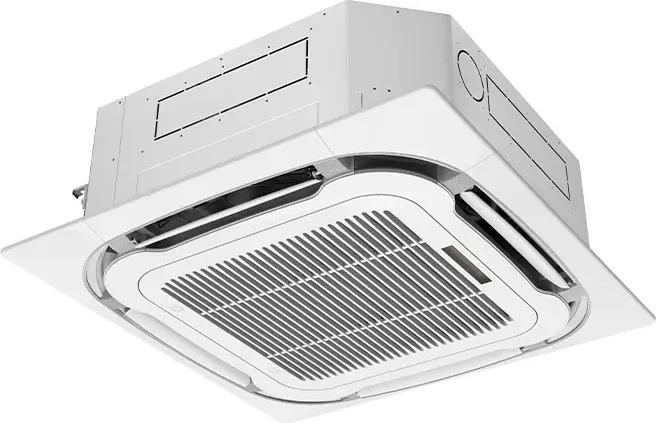

Recessed four-way cassettes for suspended ceilings. 4.80 – 16.25 kW heating and 3.30 – 10.81 kW cooling on high speed.
| SKU | Model | Cooling | Heating | Airflow | Body size W × D × H | Panel |
|---|---|---|---|---|---|---|
| A1572 | AFC-300CA/4BA | 3.30 kW | 4.80 kW | 510 m³/h | 570 × 570 × 260 mm | 650 × 650 mm |
| A1573 | AFC-400CA/4BA | 3.90 kW | 5.80 kW | 680 m³/h | 570 × 570 × 260 mm | 650 × 650 mm |
| A1574 | AFC-500CA/4BA | 4.50 kW | 6.75 kW | 850 m³/h | 570 × 570 × 260 mm | 650 × 650 mm |
| A1575 | AFC-600CA/4BA | 5.41 kW | 8.12 kW | 1,020 m³/h | 835 × 835 × 250 mm | 950 × 950 mm |
| A1502 | AFC-800CA/4BA | 7.21 kW | 10.81 kW | 1,360 m³/h | 835 × 835 × 250 mm | 950 × 950 mm |
| A1576 | AFC-1000CA/4BA | 9.02 kW | 13.51 kW | 1,700 m³/h | 835 × 835 × 290 mm | 950 × 950 mm |
| A1577 | AFC-1200CA/4BA | 10.81 kW | 16.25 kW | 2,040 m³/h | 835 × 835 × 290 mm | 950 × 950 mm |
| A1501 | AFC-1400CA/4BA | 12.61 kW | 18.90 kW | 2,380 m³/h | 835 × 835 × 290 mm | 950 × 950 mm |
Capacities and airflow at high fan speed. Rc 3/4″ water connections.

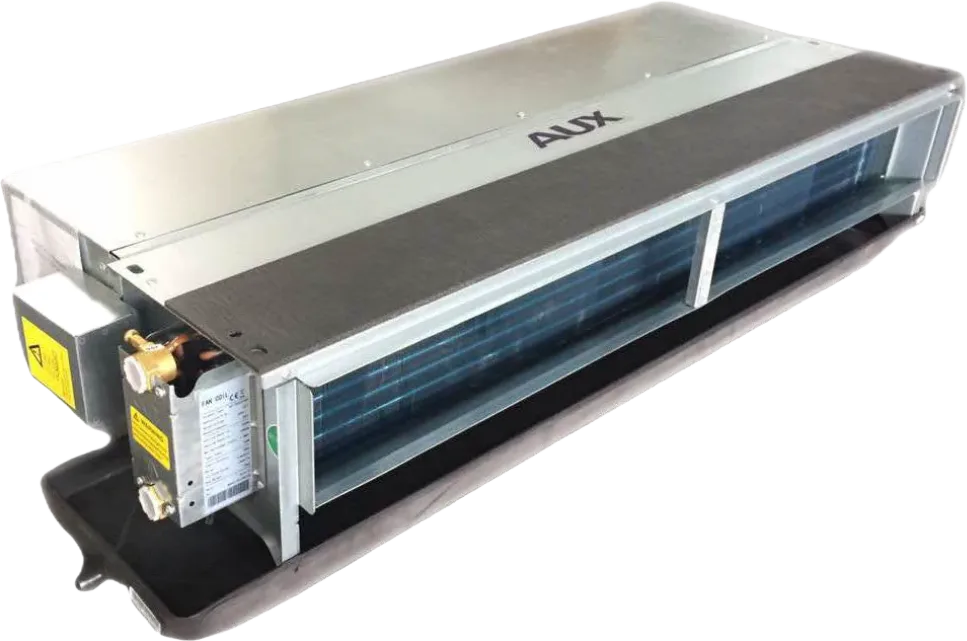

Ducted units for ceiling voids and bulkheads, in left-hand or right-hand connection.
| SKU | Model | Cooling | Heating, 60 °C water | Airflow | Size W × D × H |
|---|---|---|---|---|---|
| A1578 | AFC-200HCL(R)/4BA6M | 1.80 kW | 2.70 kW | 340 m³/h | 694 × 518 × 240 mm |
| A1579 | AFC-300HCL(R)/4BA6M | 2.70 kW | 4.05 kW | 510 m³/h | 894 × 518 × 240 mm |
| A1580 | AFC-400HCL(R)/4BA6M | 3.60 kW | 5.40 kW | 680 m³/h | 894 × 518 × 240 mm |
| A1581 | AFC-500HCL(R)/4BA6M | 4.50 kW | 6.75 kW | 850 m³/h | 1039 × 518 × 240 mm |
| A1582 | AFC-600HCL(R)/4BA6M | 5.40 kW | 8.10 kW | 1,020 m³/h | 1129 × 518 × 240 mm |
| A1583 | AFC-800HCL(R)/4BA6M | 7.20 kW | 10.80 kW | 1,360 m³/h | 1319 × 518 × 240 mm |
| A1584 | AFC-1000HCL(R)/4BA6M | 9.00 kW | 13.50 kW | 1,700 m³/h | 1719 × 518 × 240 mm |
| A1585 | AFC-1200HCL(R)/4BA6M | 10.80 kW | 16.20 kW | 2,040 m³/h | 1719 × 518 × 240 mm |
| A1586 | AFC-1400HCL(R)/4BA6M | 12.60 kW | 18.90 kW | 2,380 m³/h | 1909 × 518 × 240 mm |
External static pressure 30 Pa as standard, 12 Pa optional. Cooling rated at 7 / 12 °C water. Rc 3/4″ (DN20) water connections.
Sizing
Where fan coils are served by a heat pump, size on the 50 °C heating figure unless the system design confirms a higher flow temperature.
Documents
FAQs
Quick answers about using AUX fan coil units with a heat pump.
Fan coil units heat and cool from a single water circuit. They are a natural partner for a heat pump where a low flow temperature would leave radiators undersized.
The recommended heating flow temperature is 30 – 45 °C and the cooling flow temperature 7 – 18 °C. Where fan coils are served by a heat pump, size them on the 50 °C heating figure unless the system design confirms a higher flow temperature.
Yes. Every family cools on chilled water as well as heating. For example, the slim floor-standing units give 0.81 – 3.45 kW of cooling on 7 °C water, and the wall-mounted Q Series 2.70 – 5.41 kW.
Choose by where it goes in the room. The slim floor-standing unit is 130 mm deep and sits where a radiator used to be. The wall-mounted Q Series is a high-wall unit. Cassettes are recessed into a suspended ceiling. The concealed M Series fits ceiling voids and bulkheads, at 240 mm high.
The slim floor-standing units come with a remote controller; a wall thermostat is an optional extra and control valves are not included. The wall-mounted Q Series has Wi‑Fi, a three-way valve and a Modbus gateway built in.
Yes. Send us the room loads and the design flow temperature and our technical team will select the units. Contact us or call 0345 257 7387.
Send us the room loads and design flow temperature and our technical team will select the units.
