Mini VRF
Single-phase and three-phase versions for homes, shops and small offices.
- 8 – 18 kW cooling
Variable refrigerant flow connects one outdoor unit, or a bank of modular outdoor units, to many indoor units on a single refrigerant circuit, with every room controlled on its own.
Three families
The complete range is available through AUX UK.
Single-phase and three-phase versions for homes, shops and small offices.
Three-phase modules for medium-sized commercial buildings, combining into one system of up to 36 HP.
The full DC inverter platform for offices, hotels, schools, healthcare and retail.
Mini VRF
Single-phase and three-phase versions for homes, shops and small offices. DC inverter compressors and DC fan motors for high efficiency and low noise, with a wide voltage tolerance of ±15%.
| Model | Cooling | Heating | Max piping |
|---|---|---|---|
| ARV-H80/NR1B | 8.0 kW | 9.0 kW | 80 m |
| ARV-H100/NR1B | 10.0 kW | 12.0 kW | 80 m |
| ARV-H120/NR1B | 12.1 kW | 14.0 kW | 80 m |
| ARV-H140/NR1B | 14.0 kW | 16.0 kW | 100 m |
| ARV-H160/NR1A | 15.5 kW | 18.0 kW | 100 m |
| Model | Refrigerant | Cooling | Heating | Max piping |
|---|---|---|---|---|
| ARV-H120/SR3DCSA | R32 | 12.1 kW | 14.0 kW | 100 m |
| ARV-H140/SR3DCSA | R32 | 14.0 kW | 16.0 kW | 100 m |
| ARV-H160/SR3DCSA | R32 | 15.5 kW | 18.0 kW | 100 m |
| ARV-H120/SR1DCS1A | R410A | 12.1 kW | 14.0 kW | 100 m |
| ARV-H140/SR1DCS1A | R410A | 14.0 kW | 16.0 kW | 100 m |
| ARV-H160/SR1DCS1A | R410A | 15.5 kW | 18.0 kW | 100 m |
| ARV-H180/SR1DCS7A | R410A | 18.0 kW | 20.0 kW | 150 m |
The main control board is cooled by refrigerant, oil return runs without switching out of heating, and settings are restored automatically after a power cut. The R32 models carry less refrigerant and a lower global warming potential than the R410A equivalents, with a built‑in refrigerant recovery valve and a leak alarm for the rooms served.
Modular Mini VRF
Three-phase modules for medium-sized commercial buildings, combining into one system of up to 36 HP.
| Module | Cooling | Heating |
|---|---|---|
| ARV-H224/SR1DCMA | 22.4 kW | 25.0 kW |
| ARV-H252/SR1DCMA | 25.2 kW | 27.0 kW |
| ARV-H280/SR1DCMA | 28.5 kW | 31.5 kW |
| ARV-H335/SR1DCMA | 33.5 kW | 37.5 kW |

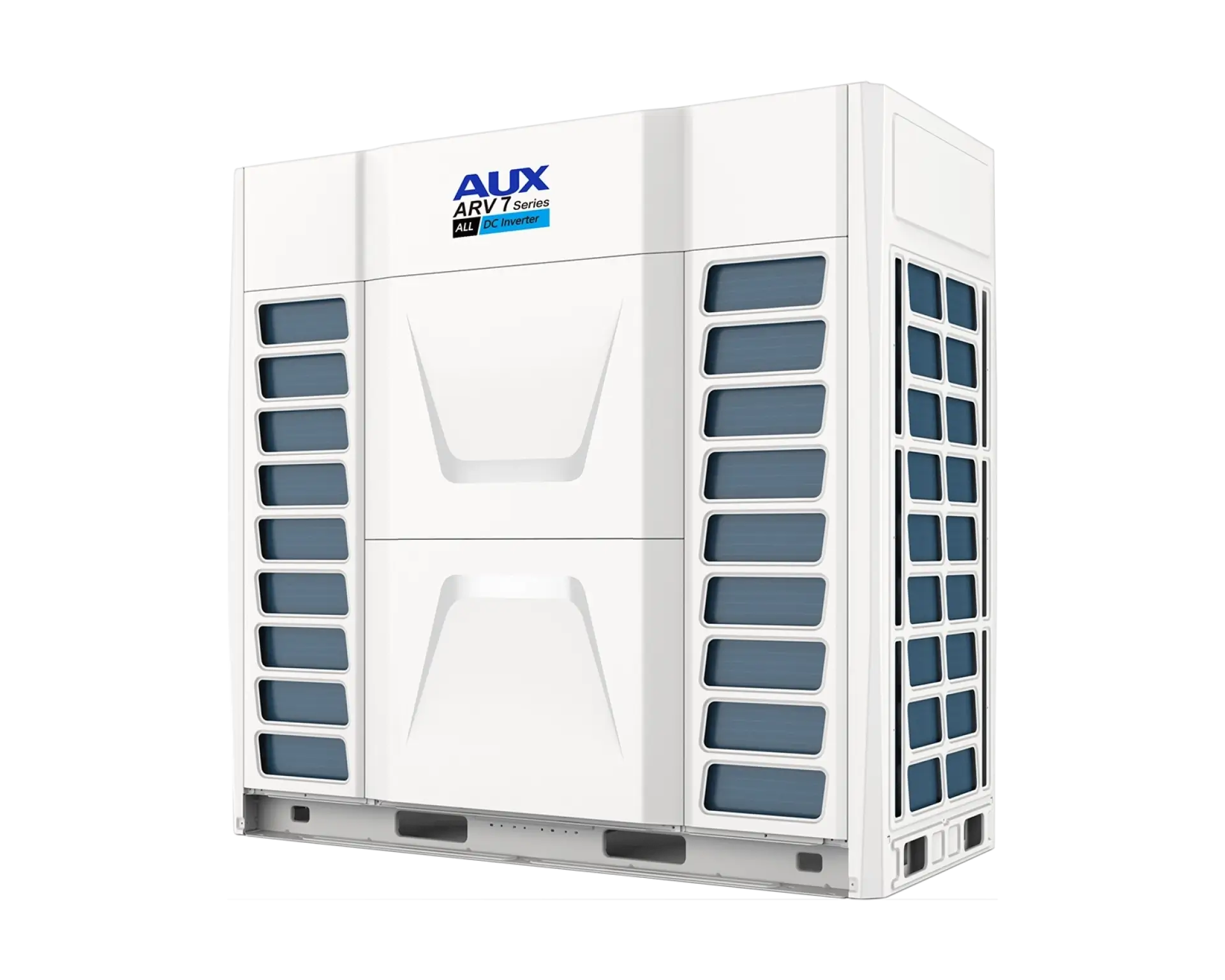

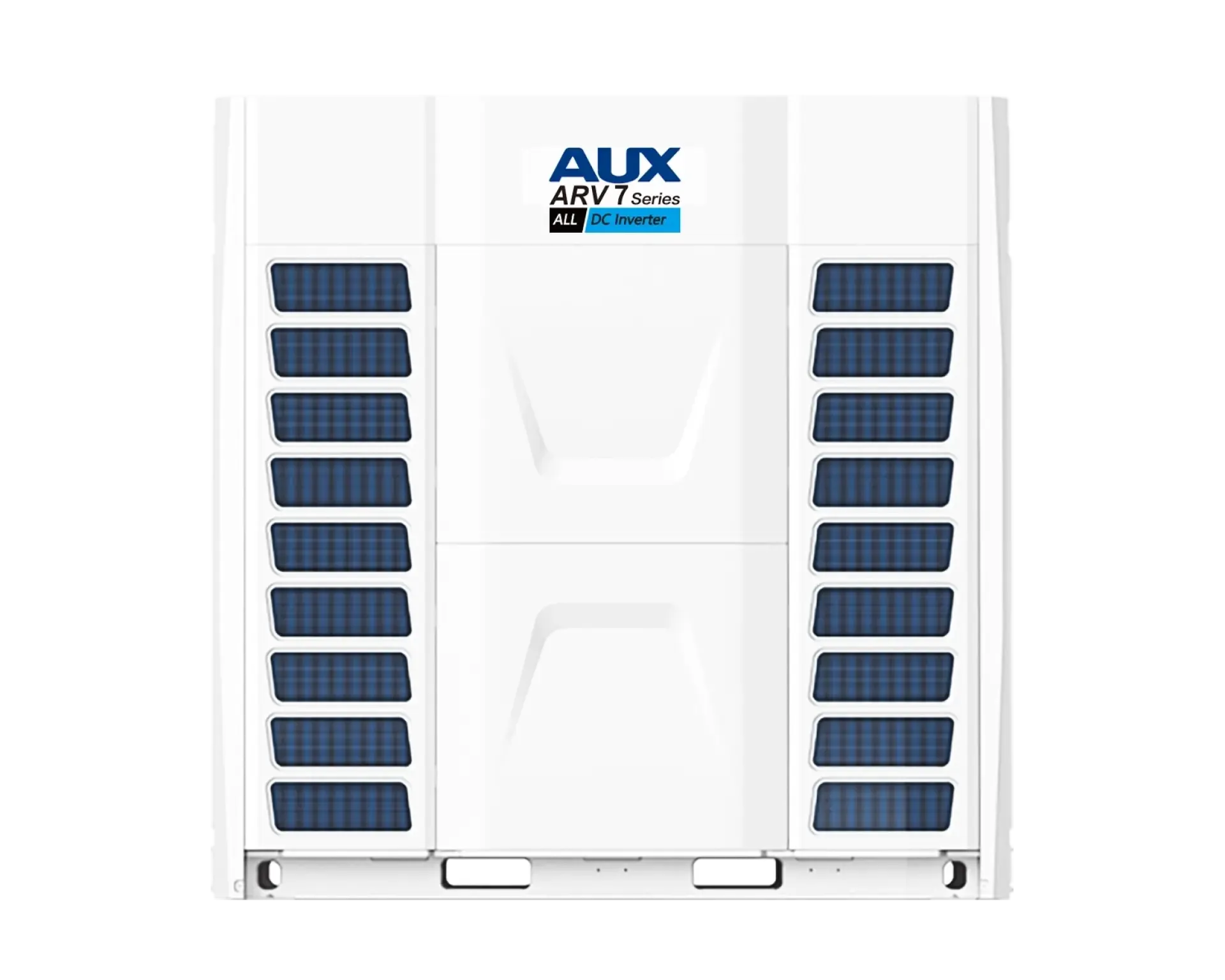

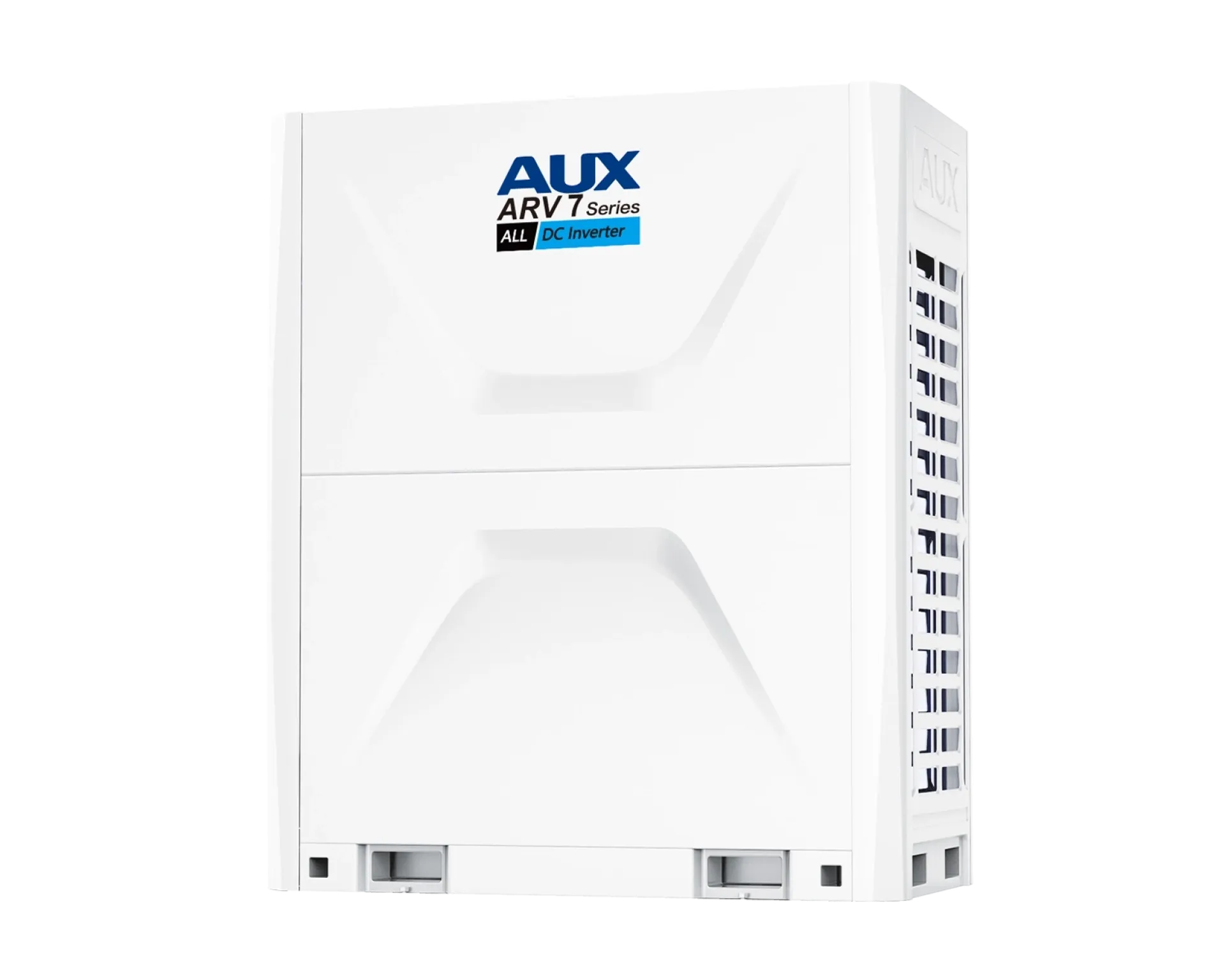

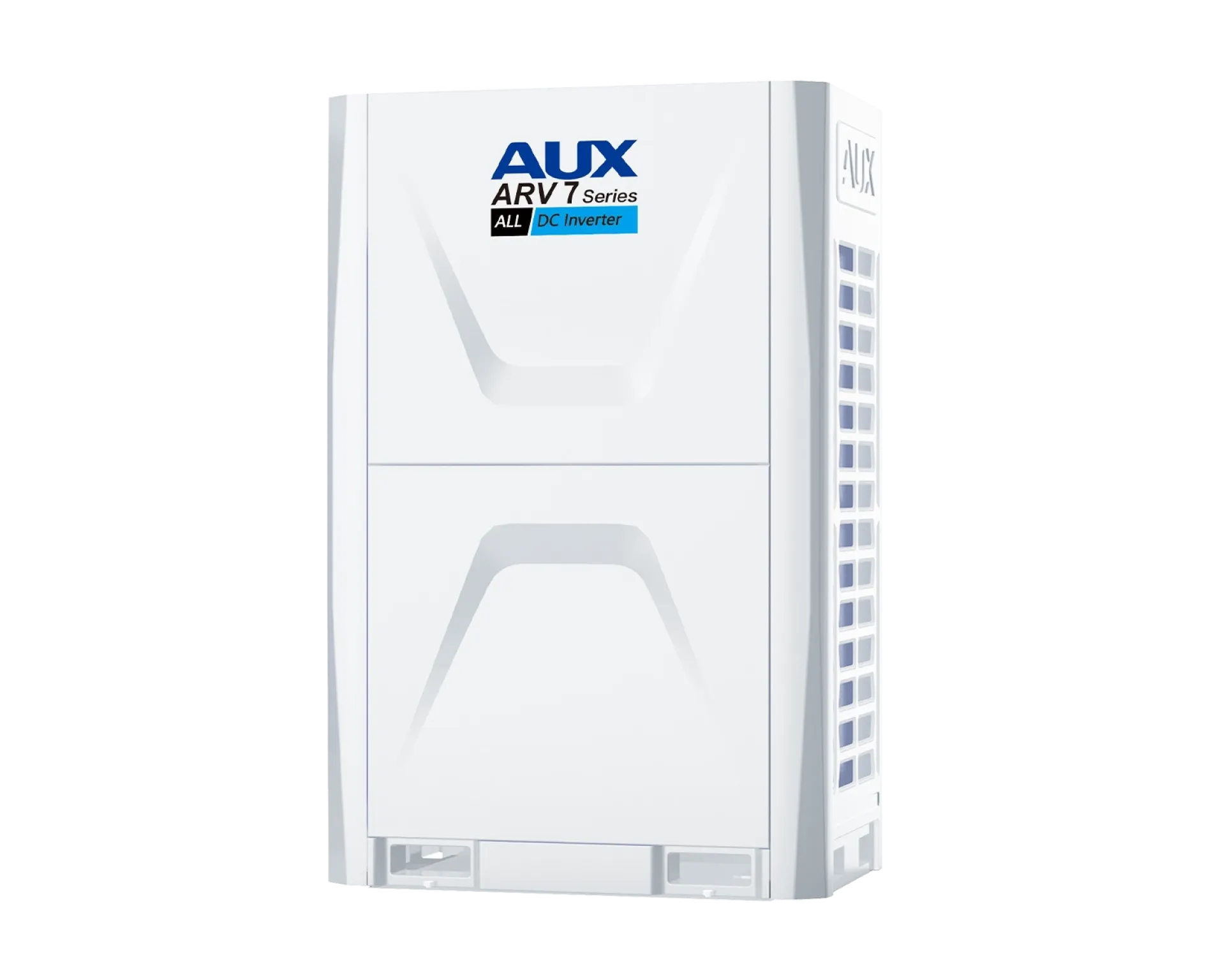

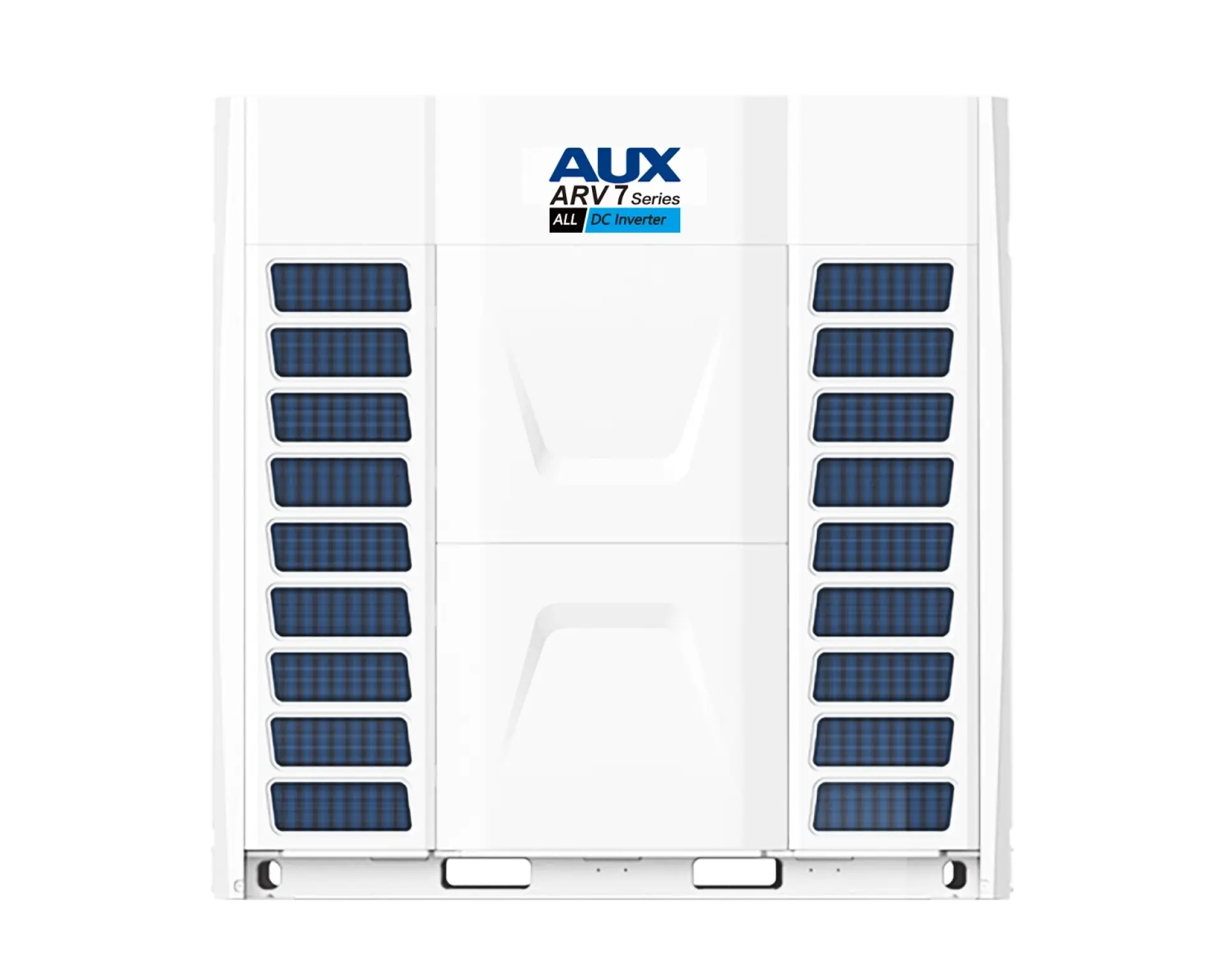

ARV7 modular VRF
The full DC inverter platform for offices, hotels, schools, healthcare and retail. Modules combine into systems of up to 144 HP, with total piping runs of up to 1,000 m and height differences of up to 110 m between outdoor and indoor units. Three phase 380 – 415 V.
| Model | HP | Cooling | Heating | Max indoor units | Module size |
|---|---|---|---|---|---|
| ARV-H250/SR1MVB | 8 | 25.2 kW | 25.2 kW | 13 | 990 × 765 × 1635 mm |
| ARV-H280/SR1MVB | 10 | 28.0 kW | 28.0 kW | 16 | 990 × 765 × 1635 mm |
| ARV-H330/SR1MVB | 12 | 33.5 kW | 33.5 kW | 19 | 990 × 765 × 1635 mm |
| ARV-H400/SR1MVB | 14 | 40.0 kW | 40.0 kW | 23 | 1340 × 765 × 1635 mm |
| ARV-H450/SR1MVB | 16 | 45.0 kW | 45.0 kW | 26 | 1340 × 765 × 1635 mm |
| ARV-H500/SR1MVB | 18 | 50.4 kW | 50.4 kW | 30 | 1340 × 765 × 1635 mm |
| ARV-H560/SR1MVB | 20 | 56.0 kW | 56.0 kW | 33 | 1340 × 765 × 1635 mm |
| ARV-H610/SR1MVB | 22 | 61.5 kW | 61.5 kW | 36 | 1340 × 765 × 1635 mm |
| ARV-H680/SR1MVB | 24 | 68.0 kW | 75.0 kW | 40 | 1850 × 825 × 1760 mm |
| ARV-H730/SR1MVB | 26 | 73.0 kW | 81.5 kW | 42 | 1850 × 825 × 1760 mm |
| ARV-H785/SR1MVB | 28 | 78.5 kW | 87.5 kW | 46 | 1850 × 825 × 1760 mm |
| ARV-H850/SR1MVB | 30 | 85.0 kW | 95.0 kW | 49 | 1850 × 825 × 1760 mm |
| ARV-H900/SR1MVB | 32 | 90.0 kW | 100.0 kW | 53 | 1850 × 825 × 1760 mm |
| ARV-H950/SR1MVB | 34 | 95.2 kW | 106.0 kW | 57 | 1850 × 825 × 1760 mm |
| ARV-H1010/SR1MVB | 36 | 101.0 kW | 112.0 kW | 61 | 1850 × 825 × 1760 mm |
ARV7 technology
Enhanced vapour injection scroll compressors improve part-load efficiency and heating capacity at low outdoor temperatures, with no oil balance pipe between modules.
Turbo, basic and high-efficiency modes change the evaporating and condensing temperatures to tune for fast response or lowest energy use.
If a module or a compressor fails, the rest of the combination keeps running while a repair is arranged. Any module can act as master.
Fan static pressure of up to 70 Pa (8 – 22 HP) or 80 Pa (24 – 36 HP) allows outdoor units to be installed inside a service floor or plant room with ducted air.
Twelve silent levels, six for day and six for night, intelligent defrosting, and a 40 – 100% power-limiting function in seven steps.
Connects directly to the CC-02 central controller or a BACnet or Modbus building management system with no mini gateway.
Indoor units
220 – 240 V single phase unless stated. Any mix of indoor units can be combined on one system.
| Type | Model series | Capacities | Notes |
|---|---|---|---|
| Wall-mounted, C type | ARVWM-H015 to H071/NR3D(C*) | 1.5 – 7.1 kW | DC fan motor, built‑in electronic expansion valve, remote controller standard |
| Compact round-way cassette | ARVCA-H15 to H56/NR1DYBB, NR3DYBB | 1.5 – 5.6 kW | Full DC fan, built‑in drain pump; R32 or R410A systems |
| Round-way cassette | ARVCA-H71 to H140/NR3DQB | 7.1 – 14.0 kW | Full DC fan, built‑in drain pump; R32 or R410A systems |
| One‑way cassette | ARVC1-H22 to H71/NR1DS | 2.2 – 7.1 kW | Full DC fan, built‑in drain pump |
| Super slim duct | ARVLD-H15 to H71/NR3DQ | 1.5 – 7.1 kW | 200 mm deep, external static pressure 10 / 30 Pa |
| Mid static duct | ARVMD-H45 to H150/NR1DM | 4.5 – 15.0 kW | External static pressure 50 / 80 Pa |
| High static duct | ARVHD-H112 to H150/4R1A | 11.2 – 15.0 kW | External static pressure 196 Pa |
| High static duct, DC | ARVHD-H220, H280/NR1DC | 22 – 28 kW | External static pressure 170 Pa, adjustable 30 – 250 Pa |
| High static duct, three phase | ARVHD-H450, H560/5R1Y | 45 – 56 kW | 380 V three phase |
| Ceiling floor | ARVCF-H28 to H140/NR1DF | 2.8 – 14.0 kW | Built‑in electronic expansion valve, remote controller standard |
| Fresh air processor | ARVFA-H220, H280/NR1DC and ARVFA-H450, H560/5R1A | 22 – 56 kW | 100% fresh air; 45 and 56 kW units three phase |
| AHU kit | ARVK-0B, 00B, 01B, 02B, 03B | By AHU coil | 0 – 10 V control for third-party air handling units, wired controller included |
| Heat recovery ventilator | AHRV-200/4 to AHRV-5000/5 | 200 – 5,000 m³/h | External static pressure 75 – 240 Pa across the range |
Controls and support
Wired controller XK-06A with timer, or an infrared remote, for each room. The CC-02 central controller runs up to 64 systems and 256 indoor units, with BACnet IP and Modbus gateways, a Wi‑Fi module for app control, and billing software with smart meters for multi-let buildings.
AHRV heat recovery ventilators bring in fresh air while recovering heat from the extract. Refrigerant leak sensors are available for occupied rooms.
For every project we prepare the outdoor and indoor unit selection, branch pipe schedule and controls specification, and supply the AUX VRF technical catalogue with full performance data, piping limits and wiring details.
FAQs
Quick answers about AUX VRF systems for consultants, contractors and building owners.
Variable refrigerant flow (VRF) connects one outdoor unit, or a bank of modular outdoor units, to many indoor units on a single refrigerant circuit, with every room controlled on its own.
Mini VRF, 8 to 18 kW in single and three phase, is for homes, shops and small offices. Modular Mini VRF combines 22 to 34 kW three-phase modules into one system of up to 36 HP for medium-sized commercial buildings. ARV7 modular VRF, with 8 to 36 HP modules and systems up to 144 HP, is for offices, hotels, schools, healthcare and retail.
Up to 61 indoor units on a single 36 HP ARV7 module. Indoor unit capacity can be up to 130% of the outdoor unit as standard, with larger ratios on request, and any mix of indoor units – from 1.5 kW wall units to 56 kW high static ducts – can be combined on one system.
ARV7 allows up to 1,000 m of total refrigerant piping per system and height differences of up to 110 m between outdoor and indoor units. Modular Mini VRF allows up to 560 m of total piping and a height difference of up to 50 m.
Yes. ARV7 connects directly to the CC-02 central controller, or to a BACnet or Modbus building management system, with no mini gateway. The CC-02 runs up to 64 systems and 256 indoor units, with BACnet IP and Modbus gateways, a Wi‑Fi module for app control and billing software for multi-let buildings.
For every project we prepare the outdoor and indoor unit selection, the branch pipe schedule and the controls specification, and supply the AUX VRF technical catalogue with full performance data, piping limits and wiring details. Send us your project to start.
We prepare the outdoor and indoor unit selection, branch pipe schedule and controls specification for every VRF project.
